Factory Manufactured DC 1000V 125 C Battery Cable for Electric Energy Storage System Es-Ryj-125, Es-H15z-F

Name: Factory Manufactured DC 1000V 125 C Battery Cable for Electric Energy Storage System EsRyj125 EsH15zF
Brand: ECHU
Price: 0.101 USD

China Factory Manufactured DC 1000V 125 C Battery Cable for Electric Energy Storage System Es-Ryj-125, Es-H15z-F factory

Brand Name : ECHU

Model Number : ES-RYJ-125/ES-H15Z-F

Certification : TUV SUD

Place of Origin : China

MOQ : 100M

Price : USD0.101-USD10.959/m

Payment Terms : T/T, Western Union

Supply Ability : 10000KM/week

Delivery Time : 10day after receiving payment

Packaging Details : splint reel/ splint box

Type : Insulaton

Application : for battery energy storage system

Rated Voltage : DC1500V

Rated Temp : 125℃

Conductor Material : Tinned copper or bare Copper

Conductor Type : stranded

Contact Now

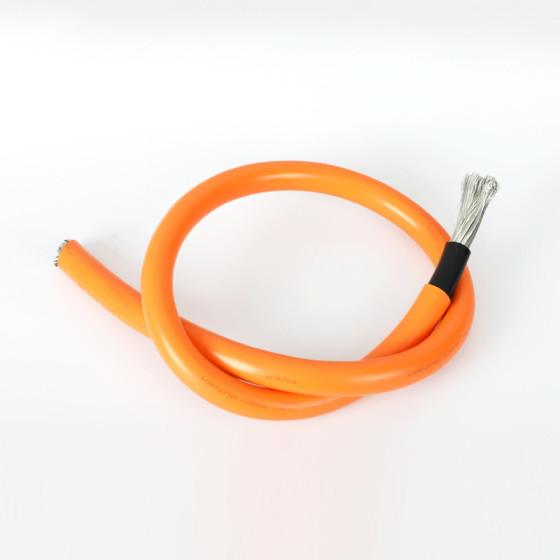

Battery Storage Cable

·Applications:
The cables are for use at the direct current (d.c.)side of battery energy storage system, connecting the batteries,battery packs, battery packs to the combiner box or the power conversion system as fixed wiring.
·Properties:
The flame retardancy meets the requirements
of iec60332-1-2
Uniform insulation thickness to ensure easy, stripping and cutting.

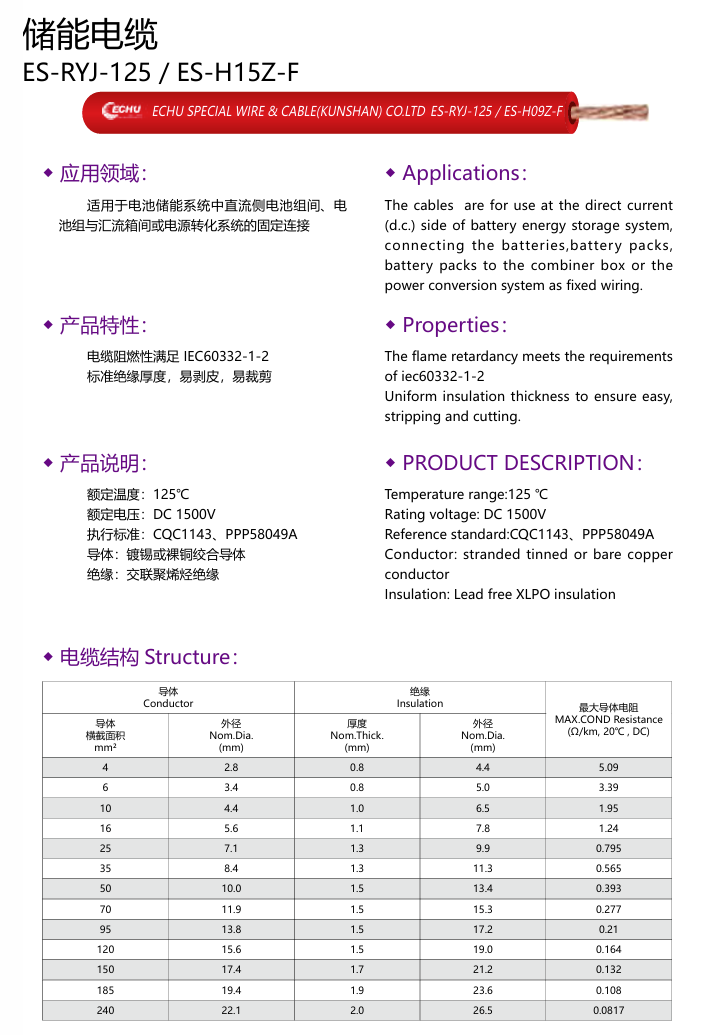

◆ PRODUCT DESCRIPTION:
Temperature range:125 ℃
Rating voltage:DC 1500V
Reference standard:CQC1143,PPP58049A
Conductor:stranded tinned or bare copper conductor
Insulation:Lead free XLPO insulation

Factory Manufactured DC 1000V 125 C Battery Cable for Electric Energy Storage System Es-Ryj-125, Es-H15z-F
